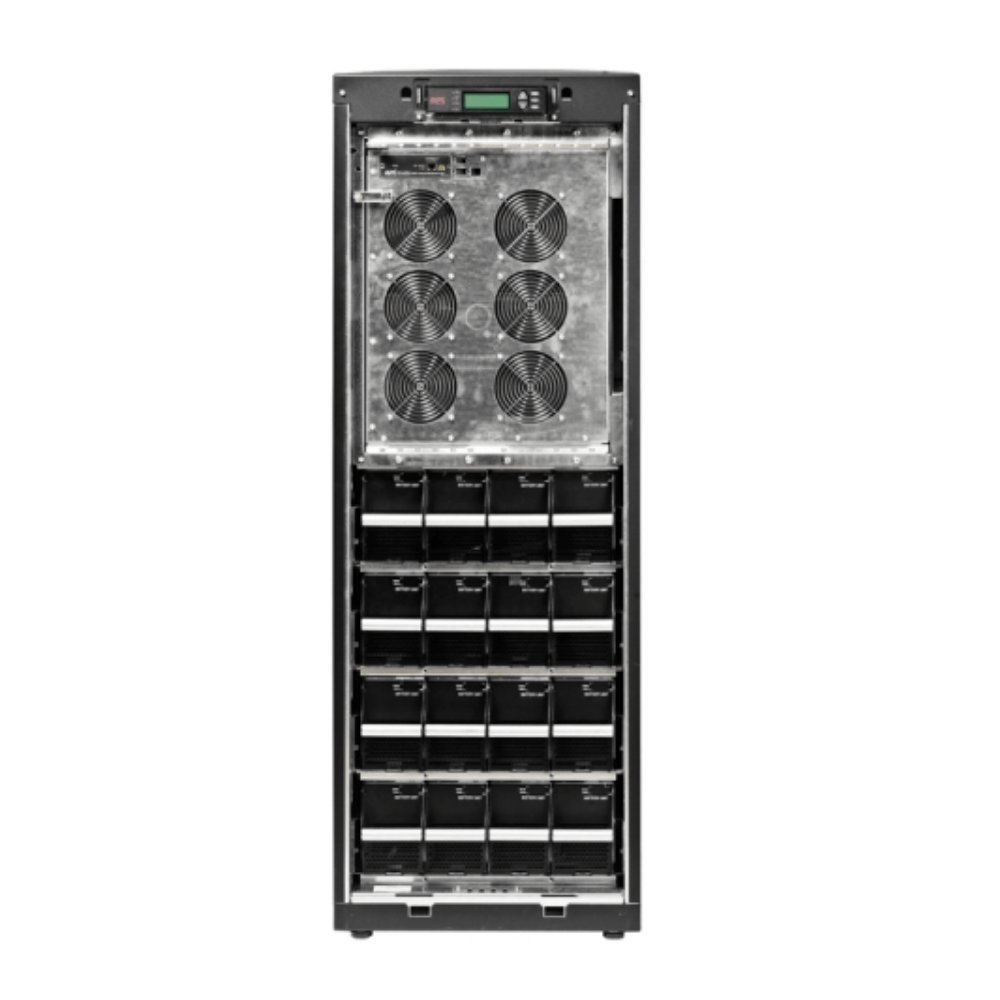

APC Smart-UPS VT 30kVA 400V (SUVTP30KH4B4S)

Call for Price

Output power capacity: 24.0 KWatts / 30.0 kVA

Max Configurable Power (Watts): 24.0 KWatts / 30.0 kVA

Nominal Output Voltage: 400V 3PH

Output Voltage Note: Configurable for 380: 400 or 415 V 3 Phase nominal output voltage

Efficiency at Full Load: 96.4 %

Output Voltage Distortion: Less than 5% at full load

Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal

Output Frequency (not synced): 50Hz +/- 0.1% for 50Hz nominal

Other Output Voltages: 380, 415

APC Smart-UPS VT 30kVA 400V (SUVTP30KH4B4S)

Output power capacity: 24.0 KWatts / 30.0 kVA
Max Configurable Power (Watts): 24.0 KWatts / 30.0 kVA
Nominal Output Voltage: 400V 3PH
Output Voltage Note: Configurable for 380: 400 or 415 V 3 Phase nominal output voltage
Efficiency at Full Load: 96.4 %
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal
Output Frequency (not synced): 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages: 380, 415
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Maximum Output Current: 48
Nominal Input Voltage: 400V 3PH
Input frequency: 40 – 70 Hz (auto sensing)
Input Connections: Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations: 304 – 477V
Efficiency at Full Load: 96.4 %
Other Input Voltages: 380, 415
Maximum Input Current: 41.0A
Input Power Factor at Full Load: 0.98
Battery type: VRLA
Included Battery Modules: 4
Typical recharge time: 5hour(s)
Nominal Battery Voltage: +/-192 V (split battery referenced to neutral)
Expected Battery Life (years): 3 – 5
RBC Quantity: 4
Extendable Run Time: 1
Interface Port(s): DB-9 RS-232 , Smart-Slot

APC Smart-UPS VT 30kVA 400V w/4 Batt. Mod., Start-Up 5X8, Internal Maint Bypass, Parallel Capability - APC Nigeria
